Line Array Cabinet
3-way passive, Dual 10"

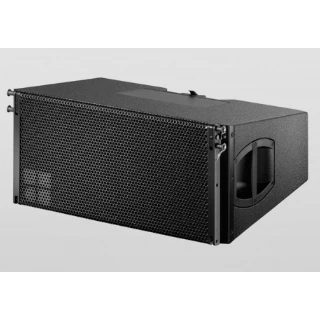

d&b Audiotechnik V12
Description
Bring power, precision, and pristine audio to your next event with the d&b Audiotechnik V12. Designed for premium sound reinforcement, this compact yet powerful 3-way passive line array speaker delivers stunning clarity across a wide frequency range. Ideal for concerts, corporate events, or large-scale productions, the V12 offers unmatched versatility and consistent performance in any venue.
🔑 Key Features
🔹 High-performance 3-way passive line array loudspeaker
🔹 Wide 120° horizontal dispersion for broad coverage
🔹 2 x 10" LF drivers, 1 x 8" MF driver, and 2 x 1.4" HF drivers
🔹 Splay angles adjustable from 0° to 14° in 1° increments
🔹 Seamless integration with d&b amplifiers for maximum output
🔹 Ideal for medium to large venues needing top-tier sound precision
🎯 Perfect for professional audio setups that demand clarity, power, and scalability.
📦 Ready to elevate your sound? Rent the d&b Audiotechnik V12 now for your next show or event!
Add to cart
d&b Audiotechnik V12 Specification
🔹 Frequency response (-5 dB standard): 67 Hz - 18 kHz
🔹 Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
🔹 Max. sound pressure: 139 dB with D20/30D, 142 dB with D40/D80/40D
🔹 Cabinets per amplifier channel: 2
🔹 Configuration: High performance 3-way passive line array loudspeaker
🔹 Nominal impedance: 8 Ω
🔹 Power handling capacity (RMS/peak 10 ms): 500 / 2000 W
🔹 Nominal dispersion angle (horizontal): 120°
🔹 Splay angle settings: 0° - 14° (1° increment)
🔹 Components: 2 x 10" LF, 1 x 8" MF, 2 x 1.4" HF compression drivers with passive crossover
🔹 Connections: 2 x NLT4 F/M, optional 2 x NL4
🔹 Dimensions (H x W x D): 310 x 700 x 460 mm / 12.2 x 27.5 x 18"
🔹 Weight: 34 kg / 75 lb
