Audio Mixer

32 mono + 2 Stereo Inputs, 16 Ouputs

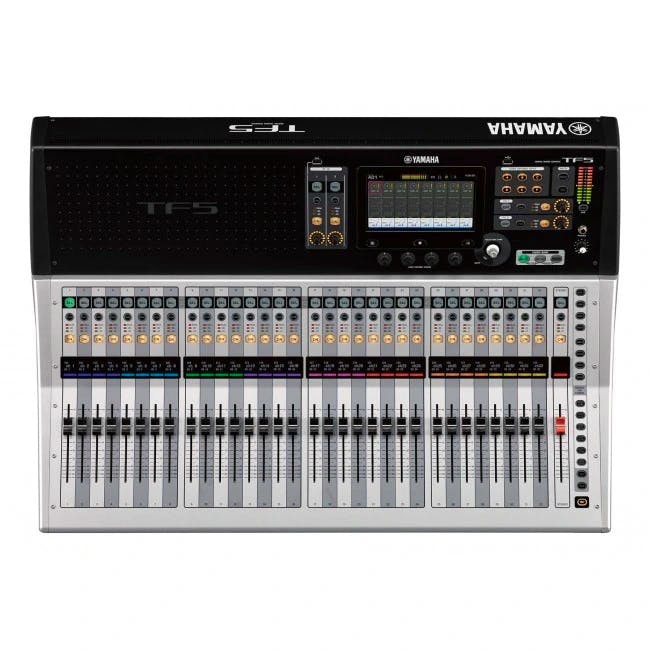

Yamaha TF5

Description

🎚️ The Yamaha TF5 is built for ease and performance with 32 input channels, touch-based operation, and 33 motorized faders. A perfect all-rounder for corporate gigs, live bands, and mobile rigs.

🔑 Key Features:
🔹 32 analog inputs + 34x34 USB audio
🔹 TouchFlow Operation™ 🖐️
🔹 33 motorized faders
🔹 Built-in effects & EQ presets
🔹 QuickPro presets for fast setup
🔹 Expansion via NY64-D Dante card

🎟️ Rent it now in the UAE – the Yamaha TF5 delivers pro audio made simple!

Add to cart

Yamaha TF5 Specification

🎛️ Mixer Type: Digital
🔊 Mixing Channels
- • Total Channels: 32 (Expandable up to 48)
- • Breakdown: 40 Mono + 2 Stereo + 2 FX Returns
🎤 Input Options
- • Mic Preamps: 32 x XLR/TRS Combo
- • Phantom Power: 32 Channels
- • Other Inputs: 2 x Dual RCA Stereo
🔈 Output Options
- • Main Outputs: 16 x XLR
- • Aux Sends: 8 x Mono, 6 x Stereo
- • Headphones: 1 x 1/4"
🔌 Connectivity
- • USB Ports: 2 x Type A, 1 x Type B
- • Computer Audio Interface: USB (34 in / 34 out)
- • Remote Control: 1 x 1/4" (Footswitch)
- • Data I/O: 1 x RJ-45 (LAN)
- • Expansion Slot: NY64-D Audio Interface Card (Sold Separately)
🎚️ Controls & Features
- • Faders: 33 x 100mm Motorized
- • EQ: 4-Band Parametric EQ per Channel
- • Built-in FX: 8 Effects + 10 GEQ
🧳 Physical Specs
- • Dimensions (H x W x D): 8.9" x 34.1" x 23.6"
- •Weight: 44.1 lbs
- •Rackmountable: ❌ No
